Xunjie Digi 100 Pack is an easy using, high-performance 100 points digital parison thickness
controller. It can control the parison thickness of the blow molding machine. It can be used to
continuous extrusion die head and accumulator die head with the current type servo valve（MOOG
G631-3005B） or voltage type servo valve (Bosch、Rexroth、Atos). This machine aims to
provide a fast production rate to produce lower weight and more durable jerrycans.
Correct installation and use of this system will make your blow molding machine has higher
operation efficiency, which has faster molding cycle, shorter time and less waste material.

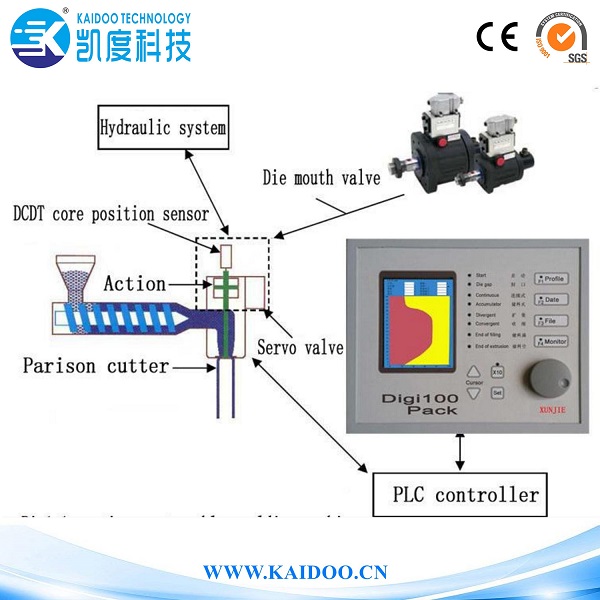

Xunjie Digi 100 systerm include three main parts: Xunjie Digi 100 controller, actions of the
die mouth ( servo valve), the feedback sensor of measuring the die mouth opening. For the
accumulator blow molding machine, it is the feedback sensor of the accumulator location. These
three parts combined according with the machine type.
The engineer set up the Digi 100 pack control panel to get the right die opening making ideal
and uniform thickness of container.
The die mouth actuator control the flow according to the signal gets from the controller
machine. To make the die orifice gap match the setting data which can control the thickness of the
parison.
Xunjie Digi 100 Pack controller provide the analog interface which can connect with the blow
molding machine PLC to make closed cycle.
