Hydraulic parts

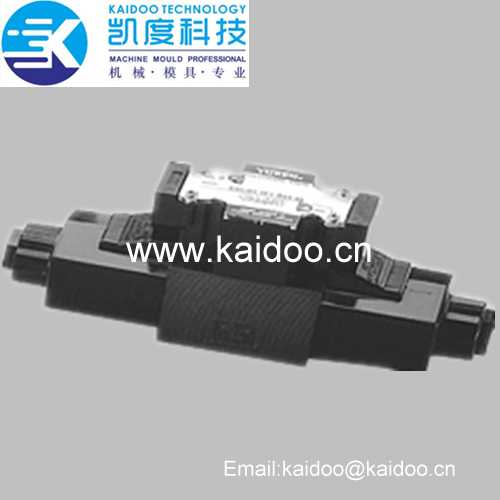

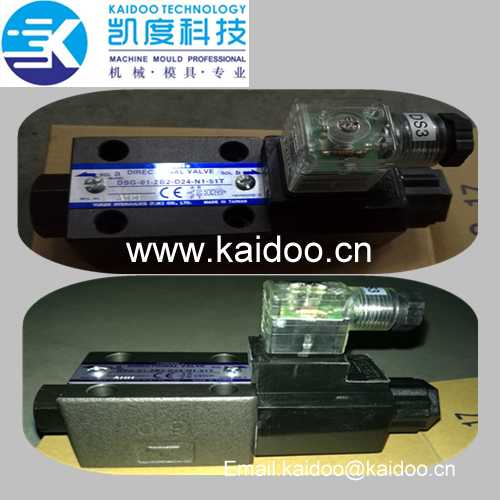

DSG series Hydraulic valve

Brand: YUKEN
Function: Hydraulic Control
Model: DSG Series
Delivery time: In Stock
Product description: DSG Series Hydraulic valve
INQUIRY

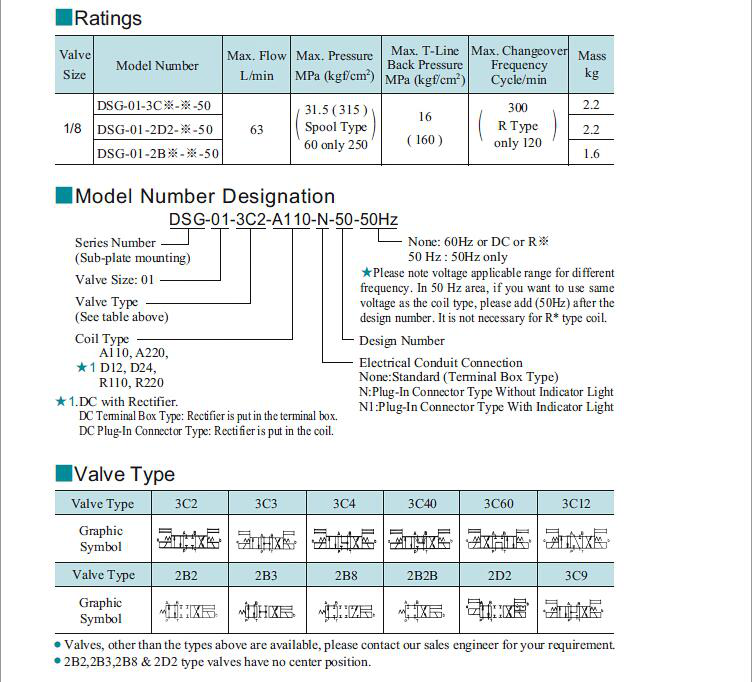

DSG-01 Series
Thes valves are adapted with strong wet-type solenoid and circuit designs to accomplish high pressure, large volume folw and lower pressure drop.
The optimum valve for any system can be utilized since many spool types and various solenoids are all available, along with other optional function.

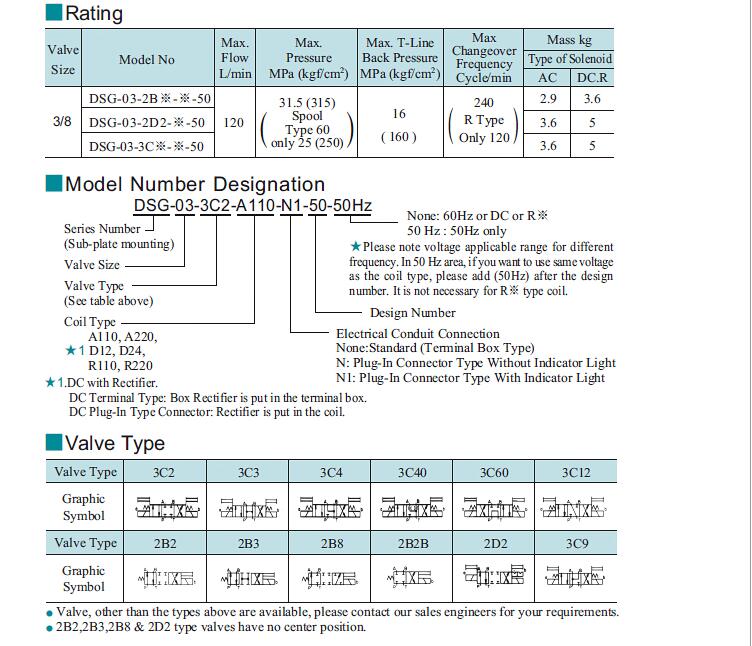

DSG-03 Series
Thes valves are adapted with strong wet-type solenoid and circuit designs toaccomplish high pressure, large volume folw and lower pressure drop.
The optimum valve for any system can be utilized since many spool types andvarious solenoids are all available, along with other optional function.
‧The pressure drop caused by the passing of pressurized oil is reduced toapprox.
1/2 of the conventional Yuken model.
‧Good Light Weight design has accomplished to reduce body weight.
