Parison Wall Thickness Control System

  • MOOG 100point Parison Controller
  • MOOG 100point Parison Controller
  • MOOG 100point Parison Controller
MOOG 100point Parison ControllerMOOG 100point Parison ControllerMOOG 100point Parison Controller

MOOG 100point Parison Controller

  • Brand: MOOG
  • Function: Parison Control
  • Model: J141-214A
  • Delivery time: In Stock
  • Product description: MOOG 100point Parison Controller
  • INQUIRY

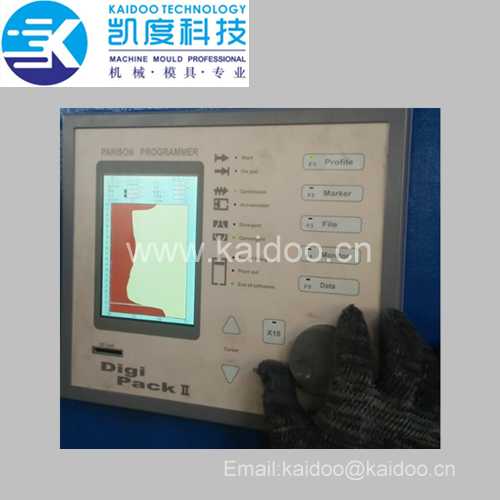

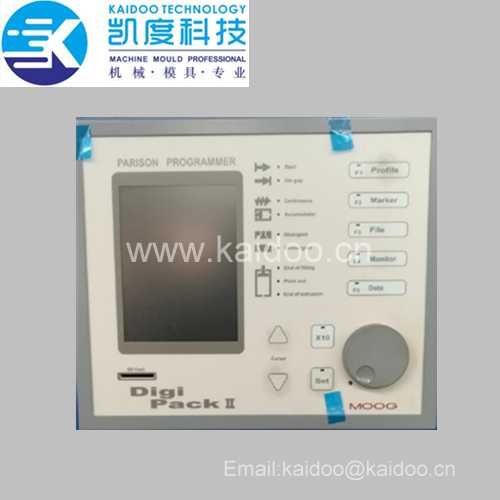

The J141-214A DigiPackⅡis a user friendly, high performance 100 Point Digital Blow Molding Parison Wall Thickness controller producing lighter, stronger containers at increased production rates. A properly installed and intelligently used system will deliver higher operating efficiency from your blow molding machine as a result of faster molding cycles, shorter change over times and reduced scrap.

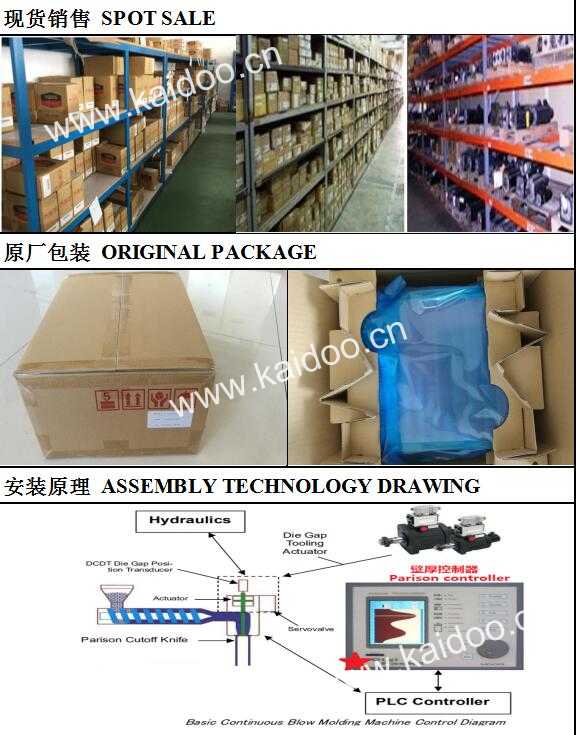

The DigiPackⅡsystem consists of three main components, the DigiPackⅡcontrol panel, a die gap tooling actuator, feedback transducers to measure tooling die gap opening and in the case of accumulator based blow molding machines, accumulator position. Together, they operate as follows:

The DigiPackⅡcontrol panel is used by the operator to control the tooling die gap opening required to obtain a container with the desired, normally constant, wall thickness required.

The die gap tooling actuator controls the thickness of the parison at the tooling die gap in response to the DigiPackⅡcontrol panel signals.

The DigiPackⅡcontrol panel provides an digital interface with the blow molding machine’s PLC controller, providing information such as program end, sequential program points status etc.
